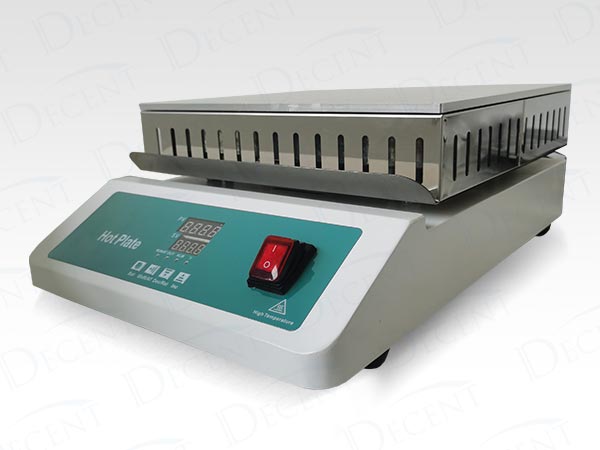

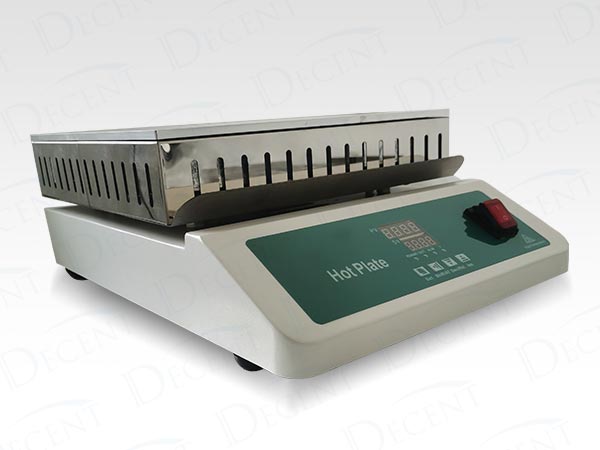

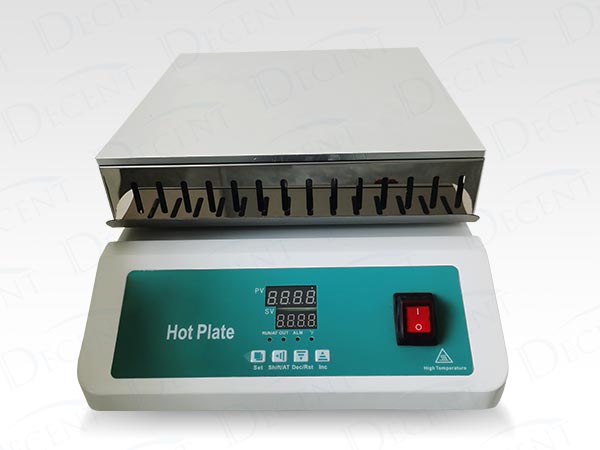

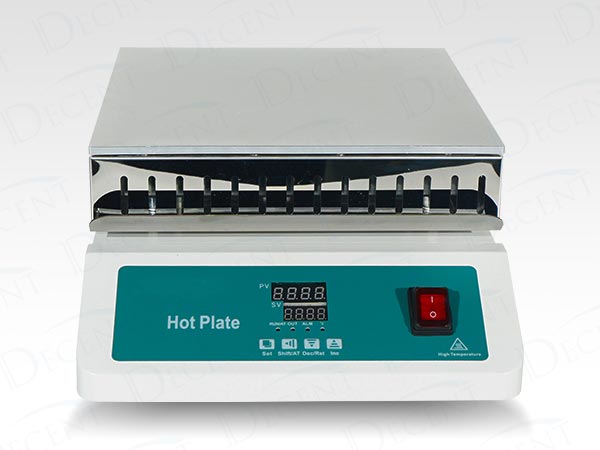

Qingdao Decent Group Lab Electric Hot Plates are designed for precise experimental heating processes in small to medium labs and chemical production. The Aluminum/graphite plate surface conserves energy, catering to batch sample processing.
|
Model |
DHP-5 |
DHP-8 |
DHP-9 |
|
|
DHP-5B |
DHP-8B |
DHP-9B |
||
|
DHP-II-5B |
DHP-II-8B |
DHP-II-9B |
||
|
Performance |
Continuous Working Hours |
Continuous |
||
|
Maximum Surface Temperature（℃） |
DHP-5, DHP-8, DHP-9: 320℃ DHP-5B, DHP-8B, DHP-9B: 350℃ DHP-II-5B, DHP-II-8B, DHP-II-9B: 400℃ |
|||
|
Structure |
Shell |
Cold-rolled Steel Plate, Surface Spray-coated |
||
|
Heating Plate Material |
Aluminum: DHP-5, DHP-5B, DHP-8, DHP-8B, DHP-9, DHP-9B Graphite Plate: DHP-II-5B, DHP-II-8B, DHP-II-9B |
|||
|
Heating Power（W） |
DHP-5: 800 DHP-5B: 1200 DHP-II-5B: 1800 |
DHP-8: 1500 DHP-8B: 2400 DHP-II-8B: 3000 |
DHP-9: 2200 DHP-9B: 3500 DHP-II-9B: 4500 |
|
|
Controller |
Continuous Operation |
Yes |
||
|
Setting Method |
Scale: DHP-5, DHP-8, DHP-9 Digital: DHP-5B, DHP-8B, DHP-9B, DHP-II-5B, DHP-II-8B, DHP-II-9B |
|||
|
Operation Function |
None |
|||
|
Timer |
None/Digital |
|||
|
Temperature Sensor |
K Style |
|||
|
Temperature Accuracy |
DHP-5, DHP-8, DHP-9: ±10% DHP-5B, DHP-8B, DHP-9B, DHP-II-5B, DHP-II-8B, DHP-II-9B: ±1% |
|||
|
Heating Plate Surface Uniformity |
DHP-5, DHP-8, DHP-9: ±15% DHP-5B, DHP-8B, DHP-9B, DHP-II-5B, DHP-II-8B, DHP-II-9B: ±10% |
|||
|
Specification |
Dimensions(W*L*H) (mm) |
340*370*220 |
420*500*220 |
470*650*220 |
|
Package Size (W*L*H) (mm) |
DHP-5 / DHP-5B: 520*380*250 DHP-II-5B: 550*410*270 |
DHP-8 / DHP-8B: 560*520*250 DHP-II-8B: 600*560*270 |
DHP-9 / DHP-9B: 660*620*250 DHP-II-9B: 700*660*270 |
|
|
Heating Plate Size（mm） |
300*300 |
350*450 |
400*600 |
|
|
Load Bearing |
20kgs |
30kgs |
40kgs |
|
|
Power Supply（50/60Hz） |
220V |
|||
|
Net Weight/Gross Weight(kg) |
DHP-5 / DHP-5B: 9 /10 DHP-II-5B: 12 /13.5 |
DHP-8 / DHP-8B: 11 /12 DHP-II-8B: 19 /20 |
DHP-9 / DHP-9B: 15 /17 DHP-II-9B: 28 / 30 |
|
