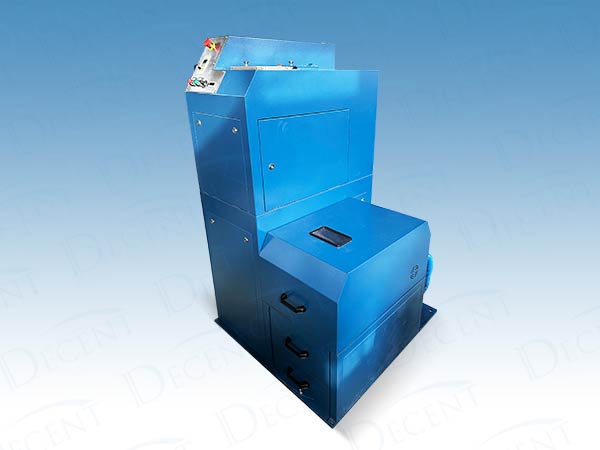

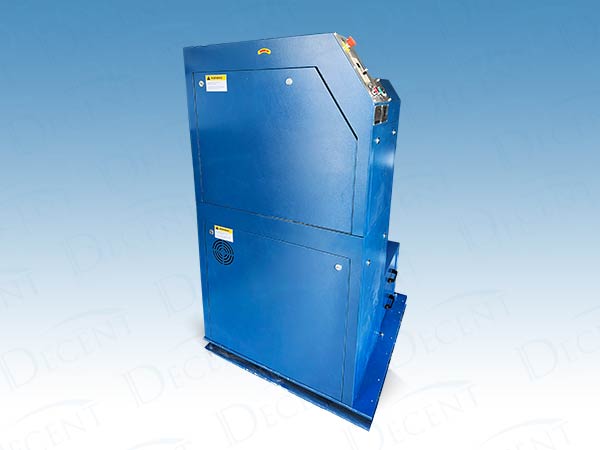

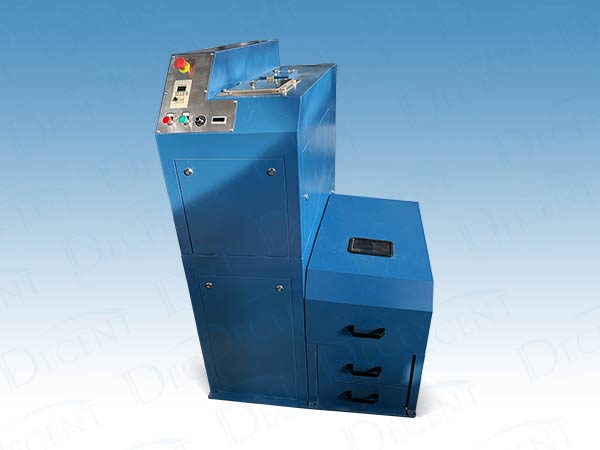

The sophisticated integration of a fine jaw crusher and a Rotating Sample Divider (RSD) which is a cutting-edge design seamlessly combines crushing and splitting, optimizing the sample preparation process into a singular, efficient operation.
The Jaw Crusher and Rotating Sample Divider are seamlessly integrated to facilitate the crushing and splitting process in a single step.

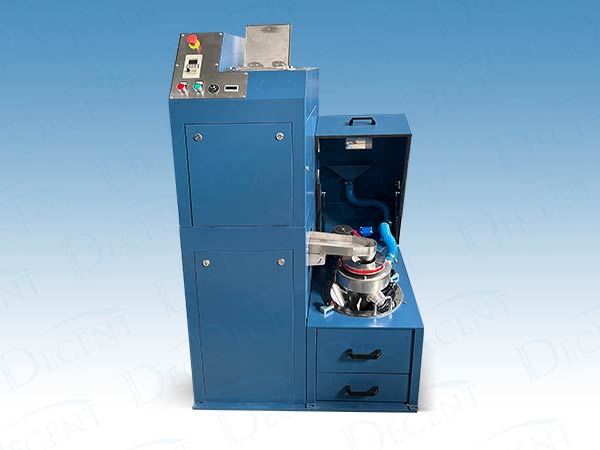

The sample undergoes crushing in the Jaw Crusher before proceeding through the discharge funnel to the rotating filler of the divider. With the filler's consistent rotation speed, the sample is proportionally divided between the trays and receiving buckets based on their reduction ratio.
|
Model |
DJRC80 |
|
|
Voltage/Frequency |
380V/50Hz（customizable） |
|
|
Power |
Jaw Crusher: 3 kW |
RSD: 0.25 kW |
|
Hopper Size |
100×125mm |
|
|
Feed-in Size |
≤80mm |
|
|
Output Size |
1-15mm |
|
|
Divider Ratio |
5%、10%、15%、20%、25%、30%、35%、40%、45%、50% |
|
|
Crush Quantity per Time |
10L |
|
|
Overall Size |
1010mm×980mmx1610mm |
|
